Year 2012
Heidenhain TNC i530 CNC Control
Table size 3600mm x 900mm
2.5 deg x 2.5deg CNC Controlled Milling Head
X=3100mm (Long)
Y=1050mm (Vertical)
Z= 1250mm (Ram In/out)
BT 50 spindle
Spindle speeds (2 ranges)
0-4000rpm (
28kw main motor

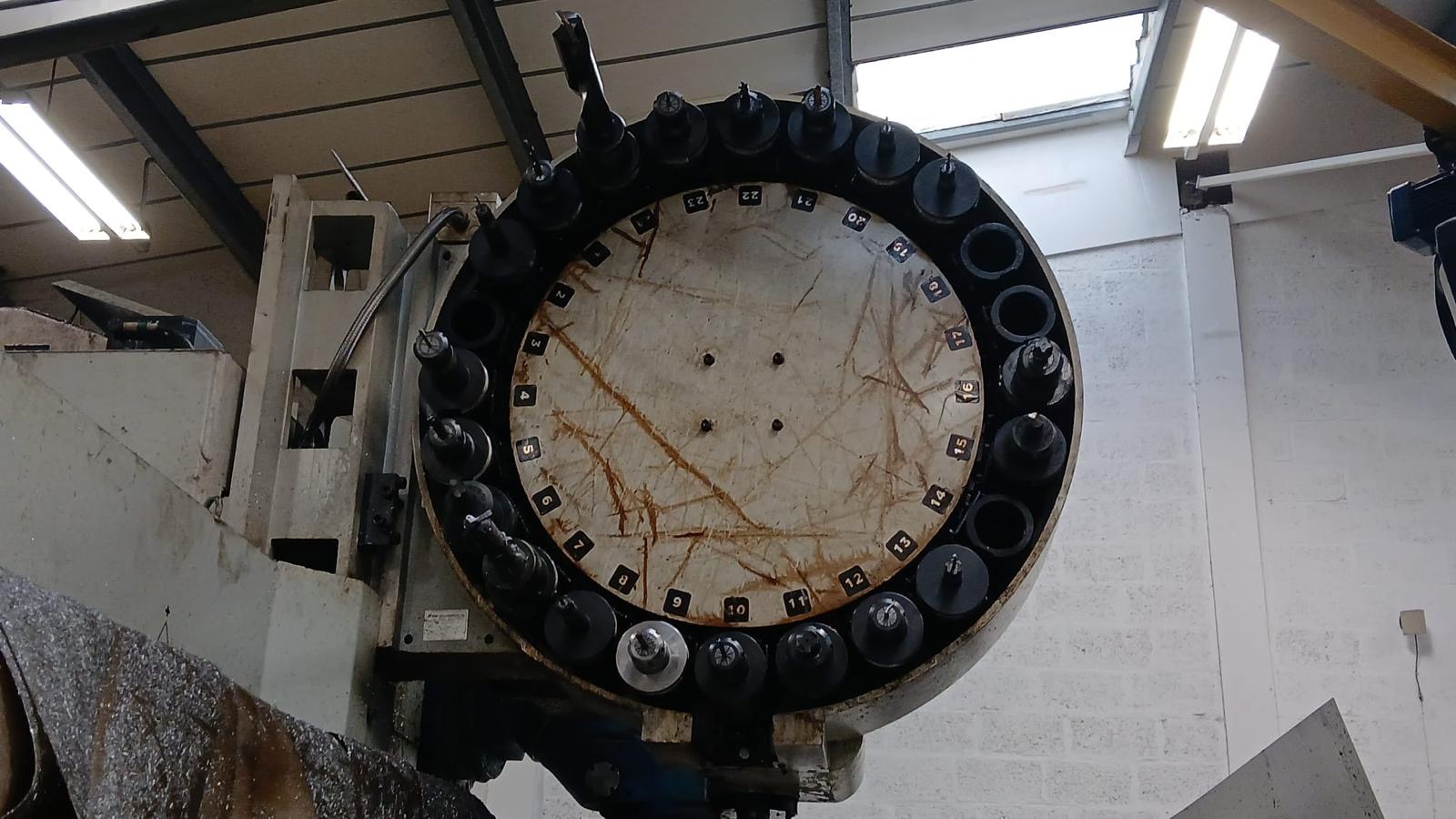

24 Station Arm Type Automatic Tool Changer
Swarf Conveyor
20Bar Thru Spindle Coolant
Fully Enclosed machine guards.
